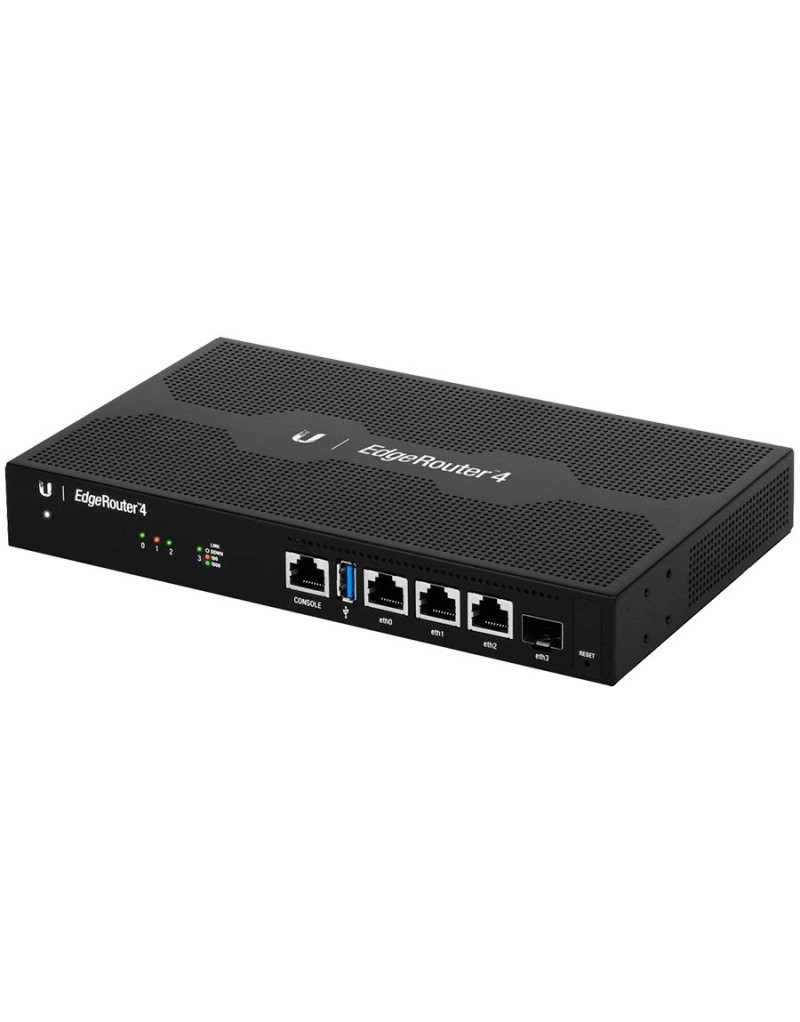

EdgeRouter 4-Port

Specifikacija

External Device Support

USB Flash

Maximum Input Frequency

60 Hz

Maximum Power Consumption

13 W

Minimum Input Frequency

50 Hz

SFP

1

Serial

1 (RJ-45)

Network Device Type

Router

Data Link Protocol Supports (New)

LAN

Protocols (OSI Model)

EthernetPPPoEIPv6IGMPOSPFRIPL2TPPPTPQoS

Firewall Functions and Protocols

NAT Support DMZ Support MAC address filtering

Router Features

Web Interface

Internal Clock Rate

1 GHz

Installed RAM

1 GB

Power Device Location

External

Application Layer

BGP DHCP SNMP DNS NTP Telnet SSH

Supported Networking Compliant Standards

IEEE 802.1p(QoS) IEEE 802.1Q(VLAN) IEEE 802.3 IEEE 802.3ab IEEE 802.3ad IEEE 802.3u

Installed Flash Memory Storage Capacity

4 GB

USB 3.0

1 (USB 2.0 (type A))

CPU

MIPS 64

Device Location

Plug-in Module

CPU Core Quantity

4

External Color

Black

Warranty Products Returnable

Yes

Warranty Term (month)

12 month(s)

Warranty validation Criteria

Serial Number

Pack Weight Brutto (kg)

1.313 kg

Pack Weight Netto (kg)

0.985 kg

Pieces in pack

1

Box Weight Brutto (kg)

9.38 kg

Packs in Box

6

Package Type

Box

Maximum Operating Ambient Temperature

50 °C

Minimum Operating Ambient Temperature

-10 °C

Maximum Operating Humidity

90 %

Minimum Operating Humidity

10 %

Warranty Term Notes

24 months - for EU

Certifications

CE, FCC, IC

Depth (mm)

136.5 mm

Height (mm)

31.1 mm

Width (mm)

229 mm

Nominal Weight

0.73 kg

EAN Code

810354020445

Status LED Indicators

Activity Status Link Speed

Maximum Input Voltage

240 V

Minimum Input Voltage

110 V

LAN

3 x Gigabit Ethernet/Fast Ethernet/Ethernet (10Base-T/100Base-TX/1000Base-T, up to 1 Gbps)

LAN

3 (RJ-45)
