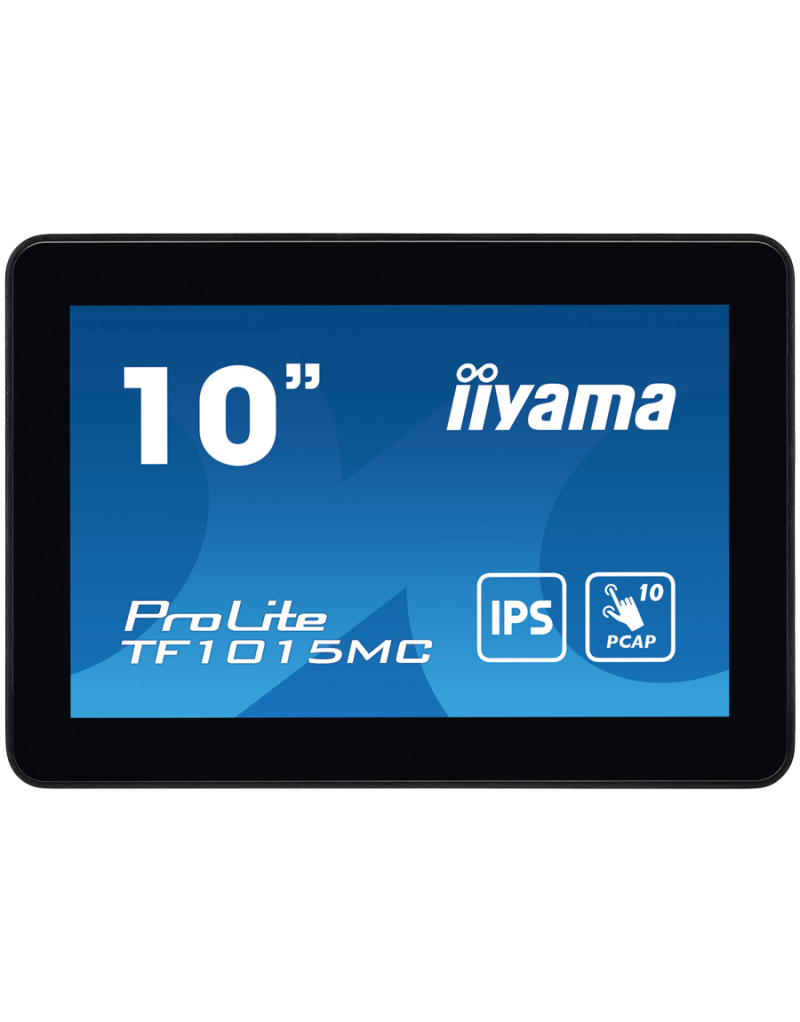

The ProLite TF1015MC 10 1 inch uses PCAP touch technology and is built into an...

Specifikacija

Audio Out

1 (3.5-mm minijack)

Mean Time Between Failures

50000 hr

Cable Included

Power Cable USB Cable HDMI Cable DisplayPort Cable

Power Consumption Operational

6 W

Power Device Location

External

Maximum Resolution

1280x800

Power Device Type

Power Adapter

VGA

1 (15-pin D-sub)

Display Type

LCD

Display Technology

TFT Active Matrix

Diagonal Length

10.1"

Viewable Display Diagonal Length

10.1"

Pitch Type

Dot Pitch

Pitch Width

0.1695 mm

Color Support

16.7M

Image Brightness

500 cd/m^2

Image Contrast

800 : 1

Image Max. H-View Angle

178 °

Image Max. V-View Angle

178 °

Response Time

29 ms

Image Aspect Ratio

16:10

Monitor Compliant Standards

VESA FDMI

Display Features

HDCP Ready10 Point Touch-Screen

Type of Matrix

IPS

Maximum Horizontal Scan Frequency

49.7 kHz

Minimum Horizontal Scan Frequency

30 kHz

DisplayPort

1

Screen Treatment

Hard Coating 7H

External Color

Black

Warranty Products Returnable

Yes

Warranty Term (month)

36 month(s)

Warranty validation Criteria

Serial Number

Pack Weight Brutto (kg)

2.7 kg

Pack Weight Netto (kg)

1.4 kg

Pieces in pack

1

Box Weight Brutto (kg)

2.7 kg

Retail Packaging Net Weight Carton

0.8 kg

Retail Packaging Net Weight Plastic

0.5 kg

Packs in Box

1

Included Accessories

Remote Control Power Adapter

Maximum Operating Ambient Temperature

40 °C

Minimum Operating Ambient Temperature

0 °C

Certifications

CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA

Depth (mm)

39.5 mm

Height (mm)

183.5 mm

Width (mm)

260.5 mm

Nominal Weight

1.4 kg

Maximum Non-Operating Ambient Temperature

60 °C

Minimum Non-Operating Ambient Temperature

-20 °C

Pack Length (mm)

39 mm

Pack Width (mm)

260 mm

Pack Height (mm)

183 mm

Box Length (mm)

370 mm

Box Width (mm)

310 mm

Box Height (mm)

160 mm

EAN Code

4948570124107

Packs per Pallet

1

Flat Display Mounting Interface

100x100mm

LAN

1 (RJ-45)

HDMI

1 (HDMI (Type A))

USB

1
