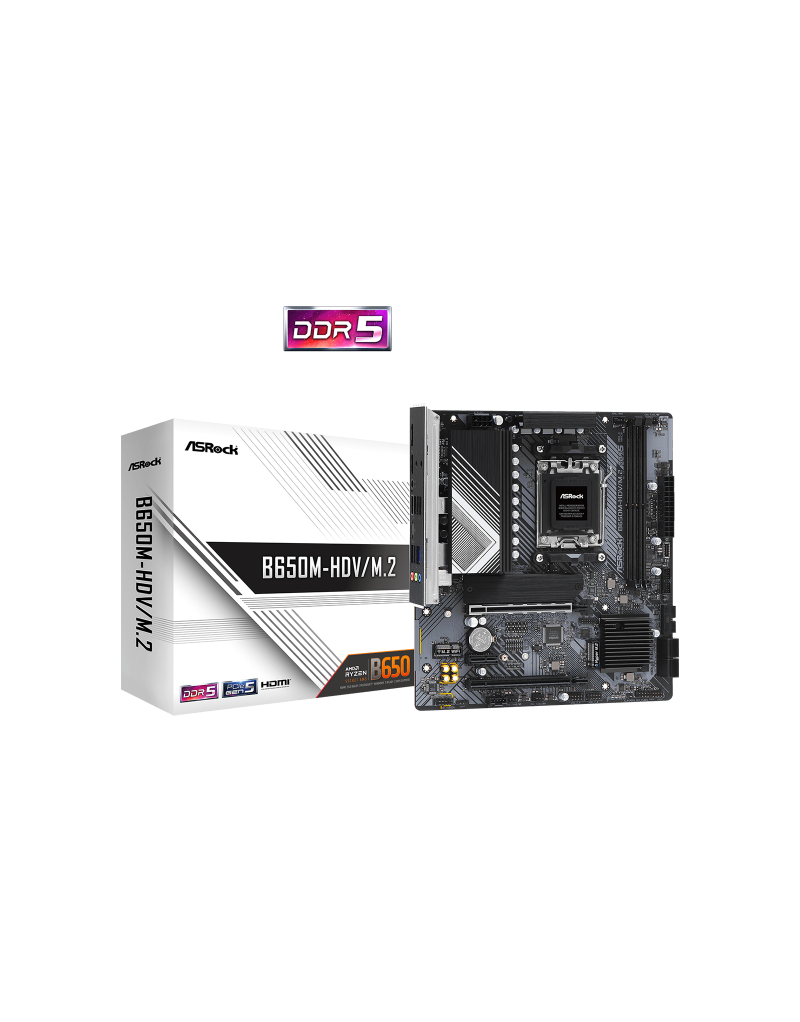

MB AM5 ASRock B650M-HDV/M.2

MB AM5 ASRock B650M-HDV/M.2

Web cena: 14.751,00 RSD * za gotovinu / avans / karticom u celosti
Maloprodajna cena: 16.522,00 RSD * za odloženo plaćanje
Cene sa PDV-om
Bez takse

Podelite do 12 rata putem kreditne kartice po maloprodajnoj ceni. Objašnjenje

Size chart
Size guide

SIZE GUIDE FOR ALL

TROUSERS, BERMUDAS, SHORTS, SKIRTS, MINI SKIRTS, SWIMMING COSTUMES…

SIZEWAISTHIPS
220,332
421,833,5
623,435,1
82536,7
1026,538,2
1228,139,8
1429,641,3
1631,242,9
1832,844,5
2034,346
SIZEWAISTHIPS
XS19,5-22,631,2-34,3
S22,6-25,734,3-37,4
M25,7-28,937,4-40,6
L28,9-3240,6-43,7
XL32-35,143,7-46,8
Dodaj za upoređivanje
Kategorije
KOMPONENTE MATIČNE PLOČE
Reference
DS_29868
Free Shipping Worldwide
Free 7 days return
Member discount
100% Secure checkout
    • CPU
      - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
    • Chipset
      - AMD B650
    • Memory
      - Dual Channel DDR5 Memory Technology
      - 2 x DDR5 DIMM Slots
      - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)
      - Max. capacity of system memory: 64GB
      - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
    • BIOS
      - 256Mb AMI UEFI Legal BIOS with GUI support
    • Graphics
      Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
      - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
      - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
    • Audio
      - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
      - Nahimic Audio
    • LAN
      - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
      - Dragon RTL8125BG
      - Supports Dragon 2.5G LAN Software
      - Smart Auto Adjust Bandwidth Control
      - Visual User Friendly UI
      - Visual Network Usage Statistics
      - Optimized Default Setting for Game, Browser, and Streaming Modes
      - User Customized Priority Control



  • Slots
    CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
    Chipset:
    - 1 x PCIe 4.0 x1 Slot (PCIE2)*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    - Supports AMD CrossFire™
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 4 x SATA3 6.0 Gb/s Connectors

    *Supports NVMe SSD as boot disks
  • RAID
    - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*


    *Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    - 1 x USB 3.2 Gen2 Type-C (Front)
    - 1 x USB 3.2 Gen1 Type-C (Rear)
    - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
    - 8 x USB 2.0 (4 Rear, 4 Front)

    *All USB ports support ESD Protection
  • Connector
    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x CPU Fan Connector (4-pin)*
    - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2 Header

    *CPU_FAN1 supports the fan power up to 1A (12W).

    **CHA_FAN1~3/WP support the fan power up to 2A (24W).
    CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 2 x Antenna Mounting Points
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen1 Type-C Port
    - 2 x USB 3.2 Gen1 Type-A Ports
    - 4 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - 1 x BIOS Flashback Button
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Dragon 2.5G LAN Software*
    UEFI
    - ASRock Full HD UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual
    - 2 x SATA Data Cables
    - 2 x Screws for M.2 Sockets
  • Form Factor
    - Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
    - 2oz Copper PCB






DS_29868
