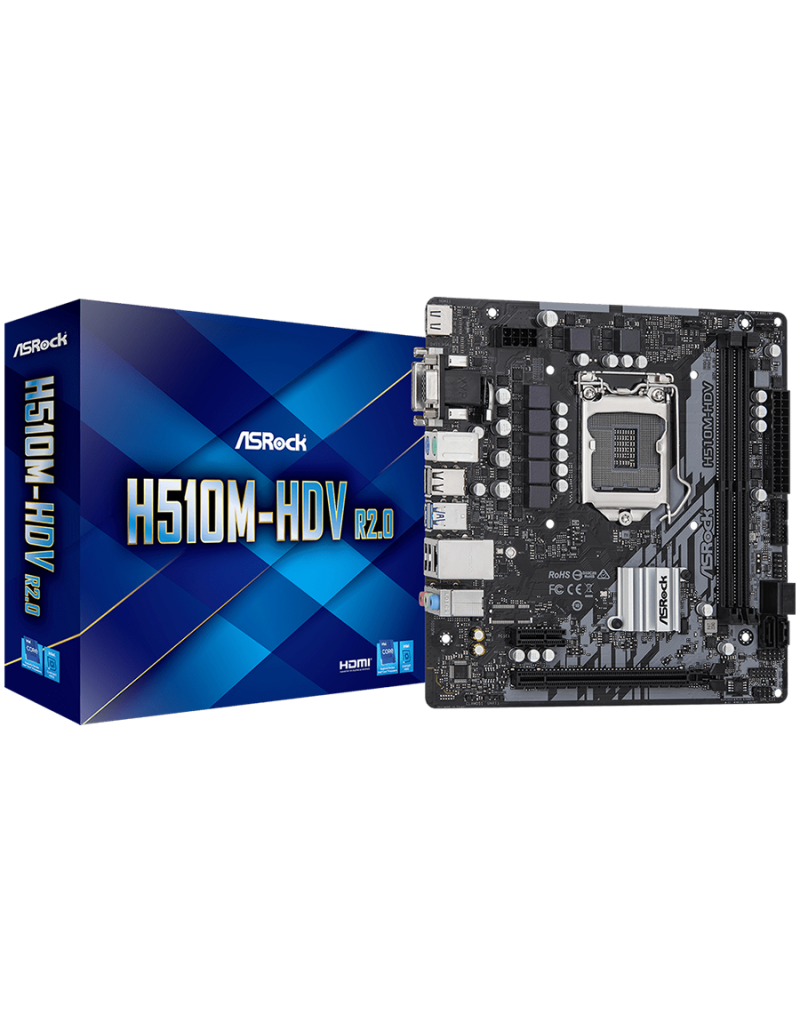

ASROCK Main Board Desktop H510M-HDV H510, S1200, 2xDDR4, 1xPCIe 4 0x16, 1xPCIe 3 0x1, 4xSATA3, 4xUSB3 2 Gen1, VGA, DVI-D, HDMI, GLAN, mATX Retail

Specifikacija

Retail Packaging Net Weight Carton

0.25 kg

Memory Form Factor

DIMM 288-pin

LAN Integrated

yes

Wake up/Sleep

Wake on LAN

Warranty Products Returnable

Yes

Cable Included

2 x SATA 6Gb/s Cables

Integrated

Storage Controller:Supports: Level 0, Level 1, Level 10, Level 5SATA III-600 (4)

Packs in Box

1

Memory Slot Total Quantity

2

BIOS Features

Multi-language BIOS SMBIOS 2.7 Support PXE boot 128Mb AMI UEFI Legal BIOS with GUI Support ACPI 6.0 Support

Warranty validation Criteria

Serial Number

Audio Interface

3 (3.5-mm minijack)

Audio Chipset

Realtek ALC887-VD2

USB 2.0

4 (USB 2.0 (type A))

Form Factor

Micro ATX

LAN Chipset

Realtek RTL8111H

BIOS Type

AMI

Pack Weight Netto (kg)

0.25 kg

CPU Maximum Quantity Supports

1

Supports Central Processor Unit

Intel 10th Gen Processors Intel 11th Gen Processors

Height (mm)

188 mm

DVI

1 (DVI-D)

Supported Operating System

Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit

Box Weight Brutto (kg)

0.3 kg

Memory Type

DDR4 SDRAM

Audio Integrated

yes

PCI Express 3.0 x1

1

Device Location

Integrated

Data Link Protocol Supports

Gigabit Ethernet/Fast Ethernet/Ethernet

Memory Speed

2133MHz(PC3-17066) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3200MHz(PC4-25600)

Retail Packaging Net Weight Plastic

0.25 kg

Maximum Installable System Memory Storage Capacity

64 GB

Power Connectors Type

24+8 pin

Warranty Term (month)

36 month(s)

Audio Output Mode

7.1 Channel Surround

Video Chipset

Intel Iris Xe Graphics

PS/2

2

Package Type

Retail

Memory Features

Two DDR Channels Unbuffered XMP 2.0

Architecture Features

Intel® Rapid Storage Technology enterprise Intel Turbo Boost Max Technology 3.0

Pack Weight Brutto (kg)

0.3 kg

CPU Socket Standard

Socket 1200

Compliant Audio Standards

High Definition Audio

Included Accessories

I/O Drive Quick Start Guide Screws Driver CD

Provides Error Checking Method

non-ECC

Hardware Monitoring

Chassis Fan Tachometer CPU Fan Tachometer System Voltage

Pieces in pack

1

Chipset

Intel H510

Video Controller Integrated

yes

PCI Express 4.0 x16

1

VGA

1 (15-pin D-sub)

Width (mm)

197 mm

USB 3.2 Gen 1

2 (USB 3.2 (type A))

LAN

1 (RJ-45)

HDMI

1 (HDMI (Type A))
