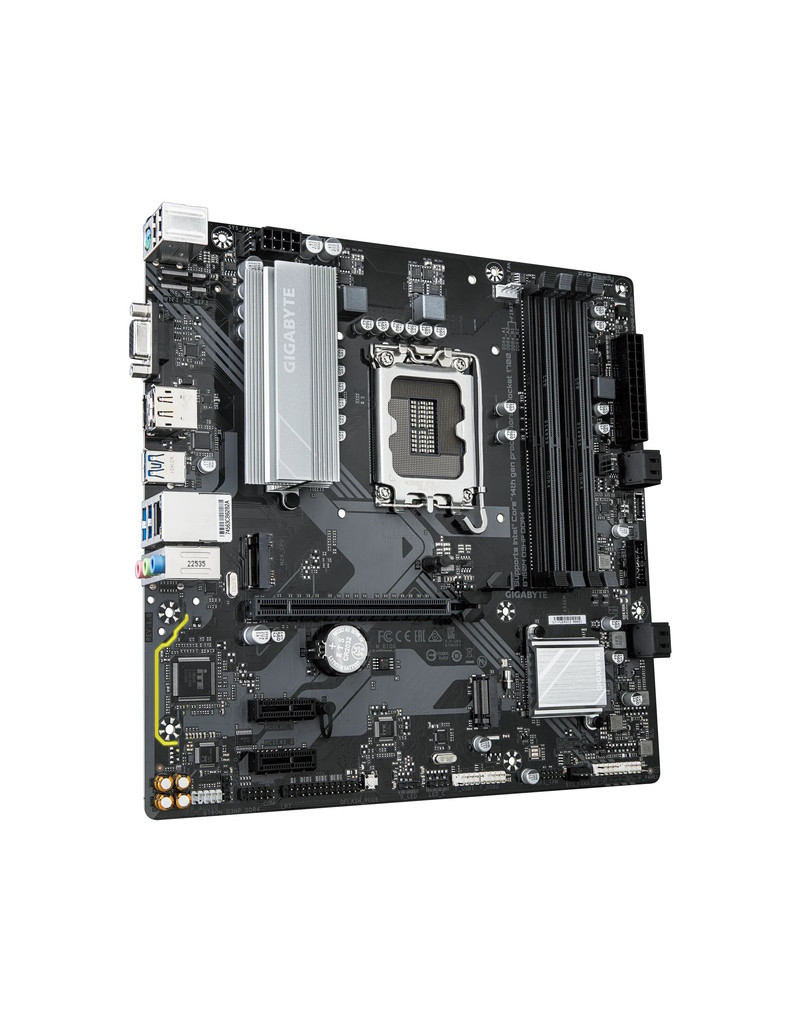

GIGABYTE B760M D3HP DDR4 1.0 matična ploča

Specifikacija

Reklamacioni period

36 meseci

Napomena

High Definition

Model

Realtek

Procesorsko ležište (socket)

Intel 1700

Tip memorije

DDR4

Memorijski slotovi

4

Ostale osobine

Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije, Podrška za non-ECC UDIMM memory

Podržane memorije

3.200MT/s, 3.000MT/s, 2.933MT/s, 2.666MT/s, 2.400MT/s, 2.133MT/s, 5.333MT/s (O.C.), 5.000MT/s (O.C.), 4.800MT/s (O.C.), 4.600MT/s (O.C.), 4.400MT/s (O.C.), 4.266MT/s (O.C.), 4.000MT/s (O.C.), 3.733MT/s (O.C.), 3.600MT/s (O.C.), 3.466MT/s (O.C.), 3.400MT/s

Podržane memorije

3.200MT/s, 3.000MT/s, 2.933MT/s, 2.666MT/s, 2.400MT/s, 2.133MT/s, 5.333MT/s (O.C.), 5.000MT/s (O.C.), 4.800MT/s (O.C.), 4.600MT/s (O.C.), 4.400MT/s (O.C.), 4.266MT/s (O.C.), 4.000MT/s (O.C.), 3.733MT/s (O.C.), 3.600MT/s (O.C.), 3.466MT/s (O.C.), 3.400MT/s

Podržane memorije

3.200MT/s, 3.000MT/s, 2.933MT/s, 2.666MT/s, 2.400MT/s, 2.133MT/s, 5.333MT/s (O.C.), 5.000MT/s (O.C.), 4.800MT/s (O.C.), 4.600MT/s (O.C.), 4.400MT/s (O.C.), 4.266MT/s (O.C.), 4.000MT/s (O.C.), 3.733MT/s (O.C.), 3.600MT/s (O.C.), 3.466MT/s (O.C.), 3.400MT/s

Maksimalna ukupna memorija

128GB

PCI Express x16 slot

1x PCI Express 4.0 (x16 mode)

PCI Express x1 slot

2x PCI Express 3.0

SATA priključci (ukupno)

4

SATA priključci

SATA III 6Gbps

RAID

RAID 0, RAID 1, RAID 5, RAID 10

Broj kanala

8 (7.1)

PS/2

1 (tastatura ili miš)

Naponski priključci

1x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector

Serijski port

1

Paralelni port

1

Ostali priključci

1 x Clear CMOS jumper, 1 x Trusted Platform Module (TPM), 1 x Q-Flash Plus button, 4 x SATA 6Gb/s, 1 x S/PDIF Out header, 1 x RGB LED strip header, 1 x reset jumper, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip headers, 2 x M.2 So

Ostali priključci

1 x Clear CMOS jumper, 1 x Trusted Platform Module (TPM), 1 x Q-Flash Plus button, 4 x SATA 6Gb/s, 1 x S/PDIF Out header, 1 x RGB LED strip header, 1 x reset jumper, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip headers, 2 x M.2 So

Ostali priključci

1 x D-Sub Port

Ostali priključci

1 x Clear CMOS jumper, 1 x Trusted Platform Module (TPM), 1 x Q-Flash Plus button, 4 x SATA 6Gb/s, 1 x S/PDIF Out header, 1 x RGB LED strip header, 1 x reset jumper, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip headers, 2 x M.2 So

Format

microATX

Podržane tehnologije

UEFI Bios, Q-Flash Plus

Žična mreža (LAN)

1000Base-T (Gigabit)

Ukupno USB priključaka

5

Broj HDMI priključaka

1

Broj DisplayPort priključaka

1

USB-A priključci

3x USB 5Gbps (3.2 Gen 1), 2x USB 2.0

Broj M.2 slotova

2

Podržani M.2 formati

2x 2280 / 22110 (podrška za PCIe 4.0 x4/x2 mod)

USB-A

2 x podrška za 1 USB 2.0 port, 1 x podrška za 1 USB 5Gbps port

USB-C

1 x podrška za 1 USB 5Gbps port

HDMI priključci

1x HDMI 2.1

RJ-45 (LAN)

1

DisplayPort priključci

1x DisplayPort 1.2

Čipset

Intel B760

Audio

1x Front panel audio, 1x Front panel header

Audio

3x 3.5mm

Dimenzije

244mm x 244mm
