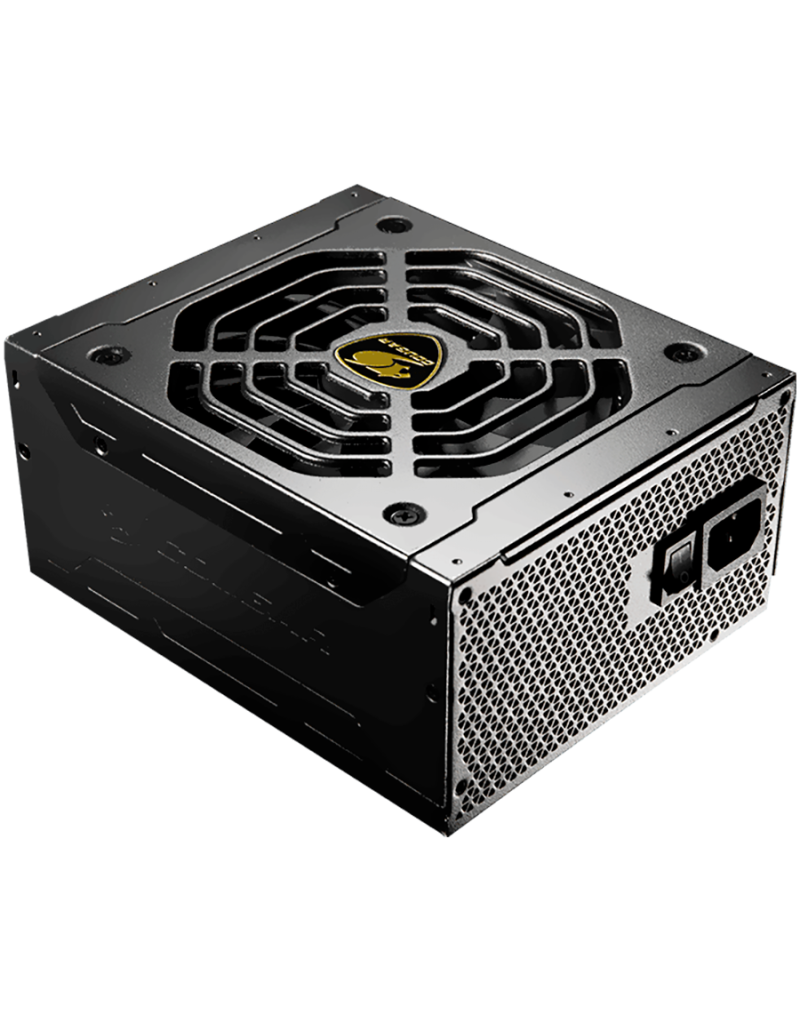

COUGAR GEX 1050 PSU, 80 plus Gold, 1050W, Fully modular

Specifikacija

S-ATA Connector

12

Efficiency

92%

Fan Diameter

135 mm

-12V

0.3 A (3.6 W)

8-pin +12V Power Connector

1

20+4-pin Main Connector

1

4-pin Peripheral Power Connector

4

80 Plus Certification

80 Plus Gold

6/8-pin PCI Express Connector

8

+12V

87.5 A (1050 W)

Modular Power Supply

Yes

+5VSB

3 A (15 W)

4/8-pin +12V Power Connector

1

Power Adapter and Power Supply Features

Active PFCLow noise

Maximum Fans Supported Quantity

1

Power Device Location

Plug-in-module

Power Device Type

Power Supply

Circuit Protection

Over Voltage Undervoltage Over Temperature Short Circuit Protection Over Power Overcharge

Rated Input Current

13 A

+5V

20 A (60 W)

+3.3V

20 A (60 W)

External Color

Silver

Warranty Products Returnable

Yes

Warranty Term (month)

24 month(s)

Warranty validation Criteria

Serial Number

Pack Weight Brutto (kg)

3.59 kg

Pack Weight Netto (kg)

2.09 kg

Pieces in pack

1

Box Weight Brutto (kg)

18.5 kg

Packs in Box

5

Package Type

Box

Form Factor

ATX

Depth (mm)

180 mm

Height (mm)

86 mm

Width (mm)

150 mm

Input Voltage

AC 100-240 V

Input Frequency

47/63 Hz

Maximum Output Power

1050 W

Pack Length (mm)

331 mm

Pack Width (mm)

229 mm

Pack Height (mm)

107 mm

Box Length (mm)

567 mm

Box Width (mm)

346 mm

Box Height (mm)

255 mm

EAN Code

4710483772207
