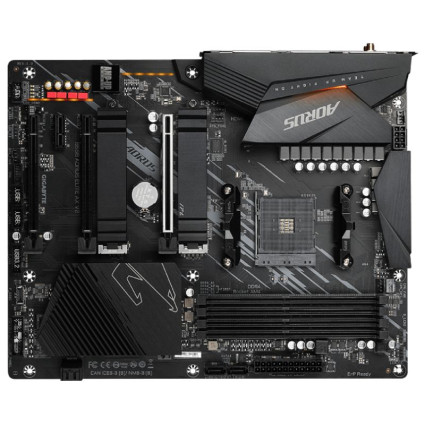

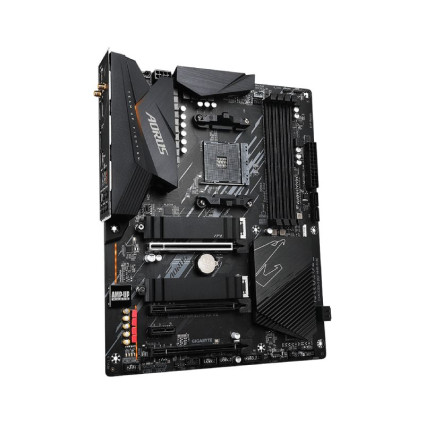

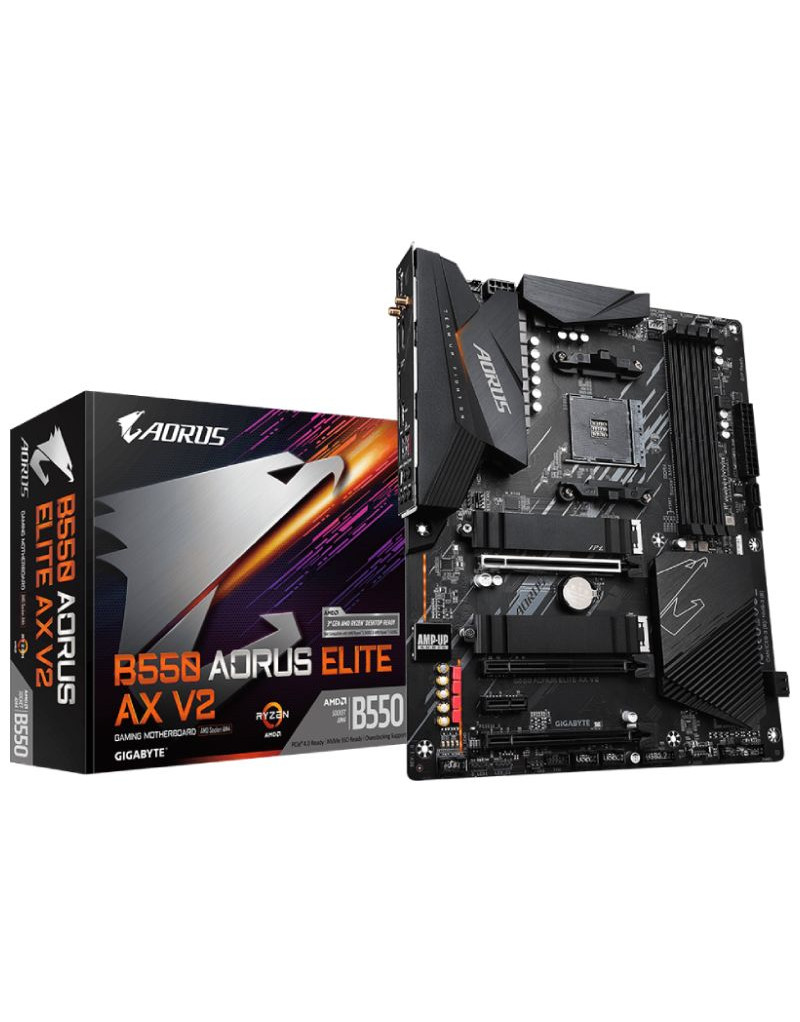

GIGABYTE B550 AORUS ELITE AX V2 rev. 1.0

Specifikacija

Reklamacioni period

36 meseci

Napomena

Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu

Napomena

High Definition, Podrška za S/PDIF izlaz

Model

Realtek®

Model

Realtek

Procesorsko ležište (socket)

AMD® AM4

Procesorsko ležište (socket)

AMD AM4

Tip memorije

DDR4

Tip memorije

DDR4, DIMM

Memorijski slotovi

4x DDR4

Memorijski slotovi

4

Ostale osobine

Ostale osobine

Dvokanalni (Dual-channel) režim rada memorije, Podrška za Extreme Memory Profile (XMP), Podrška za Unbuffered ECC memoriju

Ostale osobine

Podrška za Unbuffered ECC memoriju, Podrška za Extreme Memory Profile (XMP), Dvokanalni (Dual-channel) režim rada memorije

Podržane memorije

2.133MHz, 2.400MHz, 3.600Mhz (O.C.), 3.733Mhz (O.C.), 3.466Mhz (O.C.), 3.400Mhz (O.C.), 2.933MHz, 4.600Mhz (O.C.), 4.733Mhz (O.C.), 3.200MHz, 3.866Mhz (O.C.), 4.000Mhz (O.C.), 4.133Mhz (O.C.), 4.266Mhz (O.C.), 2.667MHz, 4.400Mhz (O.C.)

Podržane memorije

2.133MHz, 2.400MHz, 3.600Mhz (O.C.), 3.733Mhz (O.C.), 3.466Mhz (O.C.), 3.866Mhz (O.C.), 4.000Mhz (O.C.), 4.133Mhz (O.C.), 4.266Mhz (O.C.), 2.667MHz, 4.400Mhz (O.C.), 2.933MHz, 4.600Mhz (O.C.), 4.733Mhz (O.C.), 3.200MHz, 3.400Mhz (O.C.)

Podržane memorije

2.133MHz, 2.400MHz, 2.667MHz, 2.933MHz, 3.200MHz, 3.400Mhz (O.C.), 3.466Mhz (O.C.), 3.600Mhz (O.C.), 3.733Mhz (O.C.), 3.866Mhz (O.C.), 4.000Mhz (O.C.), 4.133Mhz (O.C.), 4.266Mhz (O.C.), 4.400Mhz (O.C.), 4.600Mhz (O.C.), 4.733Mhz (O.C.)

Podržane memorije

2.133MHz, 2.400MHz, 3.600Mhz (O.C.), 3.733Mhz (O.C.), 3.466Mhz (O.C.), 3.400Mhz (O.C.), 3.866Mhz (O.C.), 4.000Mhz (O.C.), 4.133Mhz (O.C.), 4.266Mhz (O.C.), 2.667MHz, 4.400Mhz (O.C.), 2.933MHz, 4.600Mhz (O.C.), 4.733Mhz (O.C.), 3.200MHz

Maksimalna ukupna memorija

128GB

PCI Express x16 slot

1x PCI Express 3.0 (x1 mode), 1x PCI Express 3.0 (x2 mode), 1x PCI Express 4.0/3.0 (x16 mode)

PCI Express x16 slot

1x PCI Express 4.0/3.0 (x16 mode), 1x PCI Express 3.0 (x1 mode), 1x PCI Express 3.0 (x2 mode)

PCI Express x16 slot

1x PCI Express 3.0 (x2 mode), 1x PCI Express 4.0/3.0 (x16 mode), 1x PCI Express 3.0 (x1 mode)

PCI Express x16 slot

1x PCI Express 3.0 (x1 mode), 1x PCI Express 4.0/3.0 (x16 mode), 1x PCI Express 3.0 (x2 mode)

PCI Express x1 slot

1x PCI Express 3.0

SATA priključci (ukupno)

4

SATA priključci

4 x SATA 6Gb/s

SATA priključci

4x SATA III

SATA priključci

SATA III 6Gbps

Ostali skladišni interfejs

2x M.2

RAID

RAID 0, RAID 1, RAID 5, RAID 10

RAID

RAID 0, RAID 1, RAID 10, RAID 5

Broj kanala

8 (7.1)

Naponski priključci

1x 8 pin 12V Power Connector, 1x 24-pin ATX main power connector

Naponski priključci

1x 24-pin ATX main power connector, 1x 8 pin 12V Power Connector

USB 2.0

4x (podrška za USB 2.0 portova)

Ostali priključci

1 x Clear CMOS jumper, 1 x Trusted Platform Module (TPM), 1x CPU Fan header, 3x System Fan header, 2x RGB LED strip headers

Ostali priključci

1 x Q-Flash Plus button, 2 x SMA antenna connectors (2T2R)

Ostali priključci

1x CPU Fan header, 3x System Fan header, 1 x Clear CMOS jumper, 1 x Trusted Platform Module (TPM), 2x RGB LED strip headers

Ostali priključci

1 x Clear CMOS jumper, 1 x Trusted Platform Module (TPM), 2x RGB LED strip headers, 3x System Fan header, 1x CPU Fan header

Ostali priključci

1 x Clear CMOS jumper, 1 x Trusted Platform Module (TPM), 1x CPU Fan header, 2x RGB LED strip headers, 3x System Fan header

Ostali priključci

1 x Q-Flash Plus button, 2x SMA antenna connectors (2T2R)

Format

ATX

Podržane tehnologije

Smart Backup, RGB Fusion, Easy Tune, Fast Boot, Game Boost

Podržane tehnologije

Easy Tune, Fast Boot, Game Boost, Smart Backup, RGB Fusion

Podržane tehnologije

RGB Fusion, Game Boost, Smart Backup, Easy Tune, Fast Boot

Podržane tehnologije

Easy Tune, Fast Boot, Game Boost, RGB Fusion, Smart Backup

Podržane tehnologije

Game Boost, RGB Fusion, Smart Backup, Easy Tune, Fast Boot

Wi-Fi standard

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac

Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standard

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Wi-Fi standard

Intel Wi-Fi 6 AX200

Bluetooth verzija

5.0

Bluetooth™

Da

Bluetooth™ verzija

5.0

Žična mreža (LAN)

2.5GBase-T (Gigabit)

Žična mreža (LAN)

1x 10/100/1000/2500 Mbps (2.5GbE)

Ukupno USB priključaka

7

Broj HDMI priključaka

1

Broj DisplayPort priključaka

1

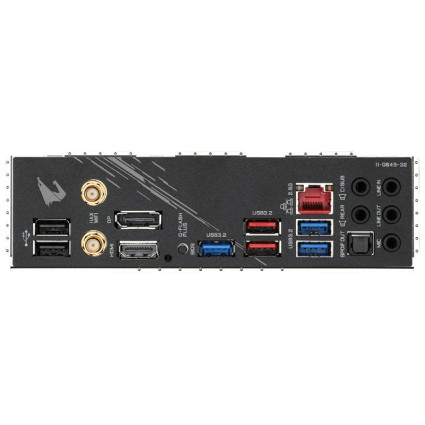

USB-A priključci

2x USB 10Gbps (3.2 Gen 2), 2x USB 2.0, 3x USB 5Gbps (3.2 Gen 1)

USB-A priključci

2x USB 10Gbps (3.2 Gen 2), 3x USB 5Gbps (3.2 Gen 1)

Broj M.2 slotova

2

USB-A

4 x podrška za 1 USB 2.0 port

HDMI priključci

1x HDMI

HDMI priključci

1

USB 3.2 priključci

2 (Tip A) Gen2, 3 (Tip A) Gen1

USB 2.0 priključci

2

RJ-45 (LAN)

1

DisplayPort priključci

1x DisplayPort

Stanje

Nekorišćeno

Wi-Fi

Da

Wi-Fi

Wi-Fi

Wi-Fi

Wi-Fi

Wi-Fi

Wi-Fi

Čipset

AMD B550

Čipset

AMD® B550

Bluetooth

Da

Audio

1x Front panel audio

Audio

5x 3.5mm, 1x S/PDIF optički

Audio

1x S/PDIF optički, 5x 3.5mm

Dimenzije

305mm x 244mm
