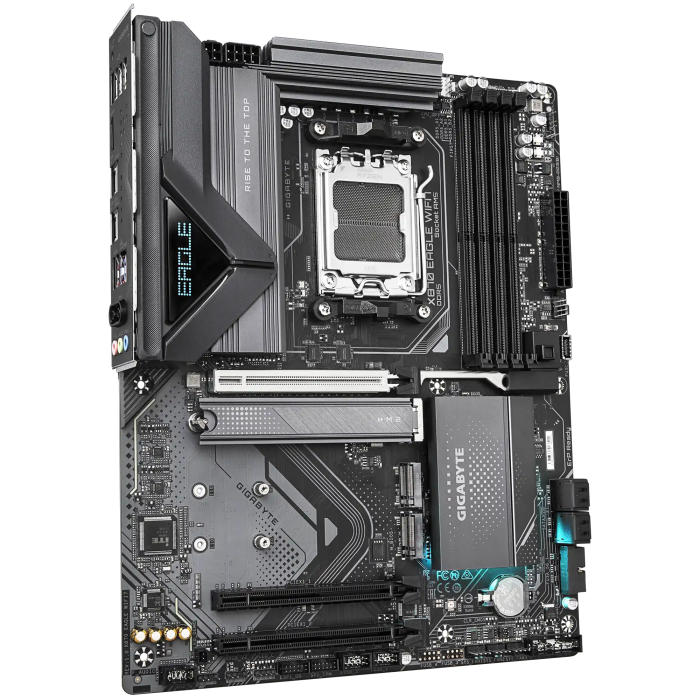

| Model | Gigabyte X870 EAGLE WIFI7 AM5 DDR5 ATX Matična ploča |
| Procesorsko podnožje (Socket) | AMD Socket AM5 |
| Skup čipova (Chipset) | AMD X870 |
| Podrška za procesore | AMD Ryzen 9000 Series ProcessorsAMD Ryzen 8000 Series ProcessorsAMD Ryzen 7000 Series Processors |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 4x 288-Pin DDR5 |
| Podrška za memorije | Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Podrška za grafiku - portovi | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 240HzSupport for DisplayPort 1.4 version and HDR.Integrated Graphics Processor with AMD Radeon Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60HzSupport for HDMI 2.1 version, HDCP 2.3, and HDR.Support native HDMI 2.1 TMDS compatible ports. |
| Slotovi za proširenja | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:AMD Ryzen 900/7000 Series Processors support PCIe 5.0 x16 modeAMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 modeAMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 modeThe PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| M.2 portovi | 3x M.2 Socket 3 |
| Čuvanje podataka - portovi | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDsThe M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector.4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 5 is only available on AMD Ryzen 9000 Series Processors.RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Bežična mreža | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- Support for 11be 160MHz wireless standardRealtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- Support for 11be 160MHz wireless standard |
| Bluetooth | 5.4 |
| Zvuk (Audio) | Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel |
| USB portovi | CPU+ASMedia USB4 controller: - 2 x USB4 USB Type-C ports on the back panelCPU: - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel- 1 x USB 3.2 Gen 1 port on the back panelCPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panelChipset: - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)- 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Konektori na zadnjoj strani | 1 x Q-Flash Plus button2 x antenna connectors (2T2R)1 x HDMI port2 x USB4 USB Type-C ports (DisplayPort)1 x USB 3.2 Gen 2 Type-A port (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header4 x system fan headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header4 x SATA 6Gb/s connectors3 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x power button1 x reset button1 x reset jumper1 x Clear CMOS jumper |
| Posebne mogućnosti | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed controlSupport for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Operativni sistem | Windows 11 |
| BIOS | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | ATX |
| Prava potrošača: | Zakonska saobraznost 2 godine |
| EAN: | 4719331864996 |
Matična ploča Gigabyte AM5 X870 EAGLE WIFI7
Na stanju
SKU
US_4719331864996
28.590 RSD
Na rate već od 4.765 RSD mesečno.
Rata je informativnog karaktera. Podložno je odobrenju banke.
Slični proizvodi
Proveriti artikle za dodavanje u korpu ili
Detalji
Deklaracija
| Naziv proizvoda | Matična ploča Gigabyte AM5 X870 EAGLE WIFI7 |
| Zemlja porekla | Tačan podatak o zemlji porekla je naveden na deklaraciji proizvoda. |
| Uvoznik | uspon |
| Prava potrošača | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
