| Model | Gigabyte B850I AORUS PRO Wi-Fi7 AM5 DDR5 Mini-ITX Matična ploča |
| Procesorsko podnožje (Socket) | AMD Socket AM5 |
| Skup čipova (Chipset) | AMD B850 |
| Podrška za procesore | AMD Ryzen 9000 Series ProcessorsAMD Ryzen 8000 Series ProcessorsAMD Ryzen 7000 Series Processors |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 4x 288-Pin DDR5 |
| Podrška za memorije | Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
| Podrška za grafiku - portovi | Integrated Graphics Processor with AMD Radeon Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60HzSupport for HDMI 2.1 version and HDCP 2.3, and HDR.Support for native HDMI 2.1 TMDS compatible ports. |
| Slotovi za proširenja | 1 x PCI Express x16 slot, integrated in the CPU:- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| M.2 portovi | 2x M.2 Socket 3 |
| Čuvanje podataka - portovi | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs2 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| SATA portovi | 2x SATA 6Gb/s |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Bežična mreža | Realtek Wi-Fi 7 RTL8922AE- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.) |
| Bluetooth | 5.4 |
| Zvuk (Audio) | Realtek ALC4080 CODECHigh Definition Audio2-channel |
| USB portovi | CPU:- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panelChipset:- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Konektori na zadnjoj strani | 1 x Q-Flash Plus button1 x HDMI port2 x antenna connectors (2T2R)1 x USB Type-C port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red)2 x USB 3.2 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port2 x audio jacks |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header1 x system fan header2 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors2 x SATA 6Gb/s connectors1 x front panel header1 x speaker header1 x front panel audio header (routed from the adapter card on the rear panel)1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x reset jumper1 x Clear CMOS jumper1 x chassis intrusion header |
| Posebne mogućnosti | Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control |
| Operativni sistem | Windows 11 |
| BIOS | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | Mini-ITX |

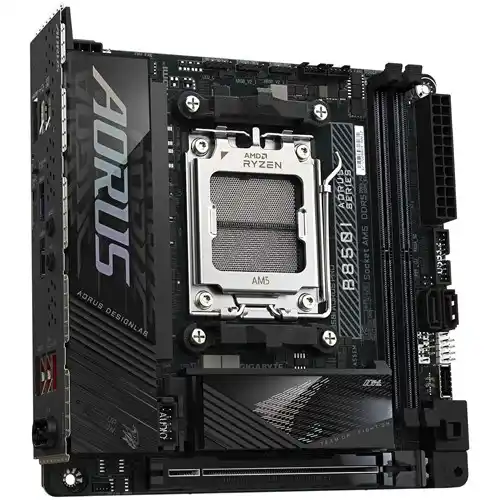

Matična ploča AM5 Gigabyte B850I Aorus Pro DDR5 HDMI/M.2
Na stanju
SKU
US_B850I Aorus Pro
33.882 RSD
Na rate već od 5.647 RSD mesečno.
Rata je informativnog karaktera. Podložno je odobrenju banke.
Slični proizvodi
Proveriti artikle za dodavanje u korpu ili
Detalji
Deklaracija
| Naziv proizvoda | Matična ploča AM5 Gigabyte B850I Aorus Pro DDR5 HDMI/M.2 |
| Zemlja porekla | Tačan podatak o zemlji porekla je naveden na deklaraciji proizvoda. |
| Uvoznik | uspon |
| Prava potrošača | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
