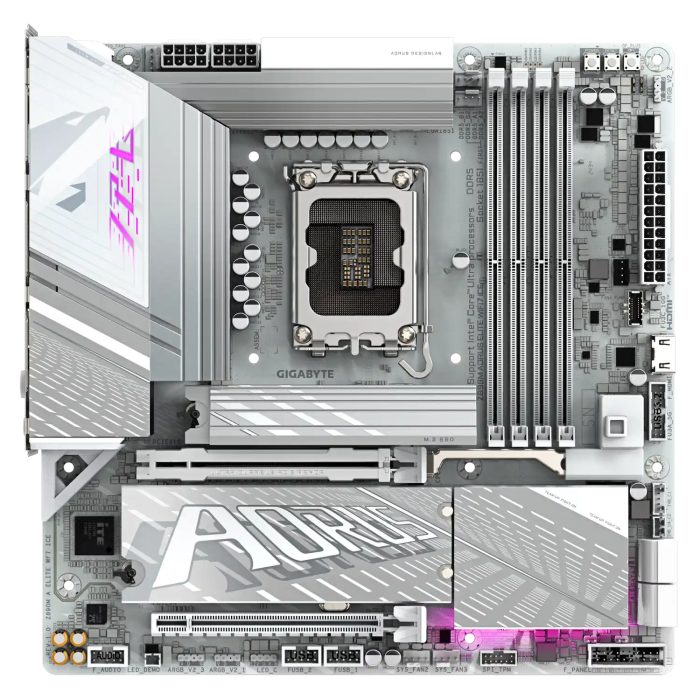

| Model | Gigabyte Z890M AORUS ELITE WIFI7 ICE DDR5 Micro ATX LGA1851 Matična ploča |
| Procesorsko podnožje (Socket) | Intel Socket 1851 |
| Skup čipova (Chipset) | Intel Z890M |
| Podrška za procesore | Support for Intel Core Ultra ProcessorsL3 cache varies with CPU |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 4x 288-Pin DDR5 |
| Podrška za memorije | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.Support for DDR5 6400/5600 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modulesSupport CUDIMM memory module |
| Podrška za grafiku - portovi | Integrated Graphics Processor-Intel HD Graphics support:- 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 144HzSupport for DisplayPort 2.1 version- 1 x DisplayPort, supporting a maximum resolution of 3840x2160 144HzSupport for DisplayPort 2.1 version- 1 x front HDMI port, supporting a maximum resolution of 1920x1080 30HzSupport for HDMI 1.4 version |
| Slotovi za proširenja | CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| M.2 portovi | 3x M.2 Socket 3 |
| Čuvanje podataka - portovi | CPU:- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)- 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Bežična mreža | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- Support for 11be 160MHz wireless standardRealtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- Support for 11be 160MHz wireless standard |
| Bluetooth | 5.4 |
| Zvuk (Audio) | Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out |
| USB portovi | CPU:- 1 x USB4 USB Type-C port on the back panelChipset:- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Konektori na zadnjoj strani | 1 x USB4 USB Type-C port (DisplayPort(Note))1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x antenna connectors (2T2R)1 x DisplayPort (Note)1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacksActual support may vary by CPU. |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header3 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x HDMI port1 x power button1 x reset button1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |
| Posebne mogućnosti | Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed controlSupport for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup |
| Operativni sistem | Windows 11 |
| BIOS | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | Micro ATX |
| Prava potrošača: | Zakonska saobraznost 2 godine |
| EAN: | 4719331865269 |
Matična ploča 1851 Gigabyte Z890 AORUS ELITE WIFI7 ICE
Nema na stanju
SKU
US_4719331865269
34.890 RSD
Na rate već od 5.815 RSD mesečno.
Rata je informativnog karaktera. Podložno je odobrenju banke.
Slični proizvodi
Proveriti artikle za dodavanje u korpu ili
Detalji
Deklaracija
| Naziv proizvoda | Matična ploča 1851 Gigabyte Z890 AORUS ELITE WIFI7 ICE |
| Zemlja porekla | Tačan podatak o zemlji porekla je naveden na deklaraciji proizvoda. |
| Uvoznik | uspon |
| Prava potrošača | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
