BlackView MP60 Intel N150/16GB/512GB/2xHDMI/2xUSB 3.0/1xRJ45/BT/WiFI/W11P Black | ||

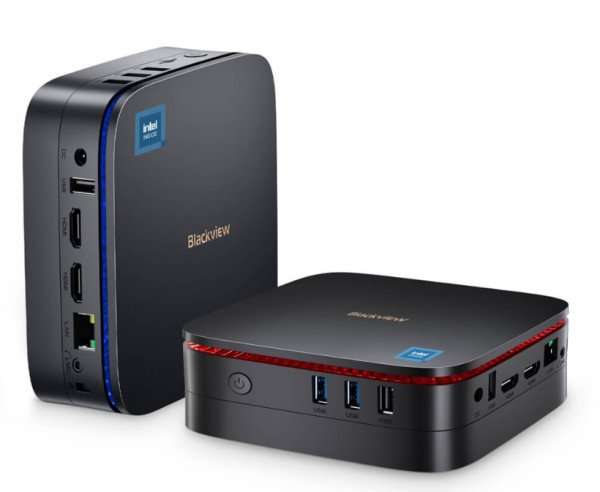

Product Appearance |
|
|
Type | Spec. | Standard Configuration |
Product | Product Type | MINI PC, Ad Terminal Box |
| Dimension | 128mm*128mm*52mm |
| Case Material | Plastic |
| Weight | Net Weight 390g，Gross Weight 870g |
System Hardware Configuration |
|
|
Type | Spec. | Description |
CPU | Model | Intel Jasper Lake N150 |
| Max. Turbo Speed | 3.6 GHz |
| Power Consumption | 10W |
Memory | Model | LPDDR4 |
| Capacity | 16GB on Board |
Storage | SSD | 512GB（M.2 2280 NGFF SSD |
| 2.5'' SSD | 2.5 SATA Port SSD/HDD, Max 2TB |
TPM | CPU integratesTPM | Support TPM 2.0 |
Double Display | Video Output | HDMI1 + HDMI2 Double Display |
LED | State | Blue light- Swith on Red light- Machine dormancy |
Internet Connection |
|
|
Type | Spec. | Description |
WIFI | Model | intel 7265/ 3165/ RTL8821CE On Board |
| Protocol | IEEE 802.11 a, b/g, n, ac |
Bluetooth | Model | intel 7265/ 3165/ RTL8821CE On Board |
| Protocol | Support Bluetooth 4.2 |
3G | Built-in | No |
4G | Built-in | No |
Ethernet | LAN1 | 10M/100M/1000M Self-adaption |
I/O |
|
|
Type | Spec. | Description |
USB | USB2.0 | USB2.0 Type-A*2 |
USB | USB3.0 | USB3.0 Type-A*2 |
TF | Expansion Memory | No |
HDMI | AV Output | HDMI 1.4b Type A x2 |
VGA | Video Output | No |
RJ45 | Gigabyte Ethernet | RJ45 x1 |
Uart | Data Transmission | No |
POWER | Power Button | x1 |
DC IN | Power Supply Input | 5.5/2.1mm DC Jack x1 |
Audio-in/out | Audio-in/out | 3.5mm Phone Jack x1 （Two-in-one interface） |
Antenna1 | FPC Antenna | WiFi 2.4+BT x1 |
Antenna2 | FPC Antenna | WIFI 5.0 |
SIM | Micro SIM | No Supporting |
Software Configuration |
|
|
Type | Spec. | Description |
OS | Version | Win11 pro |
Environment |
|
|
Type | Spec. | Description |
Environment | Working Temperature | 0~40℃ |
| Memory Temperature | -20~60℃ |
| Humidity | 90% @ 40 °C (No Condensation) |
