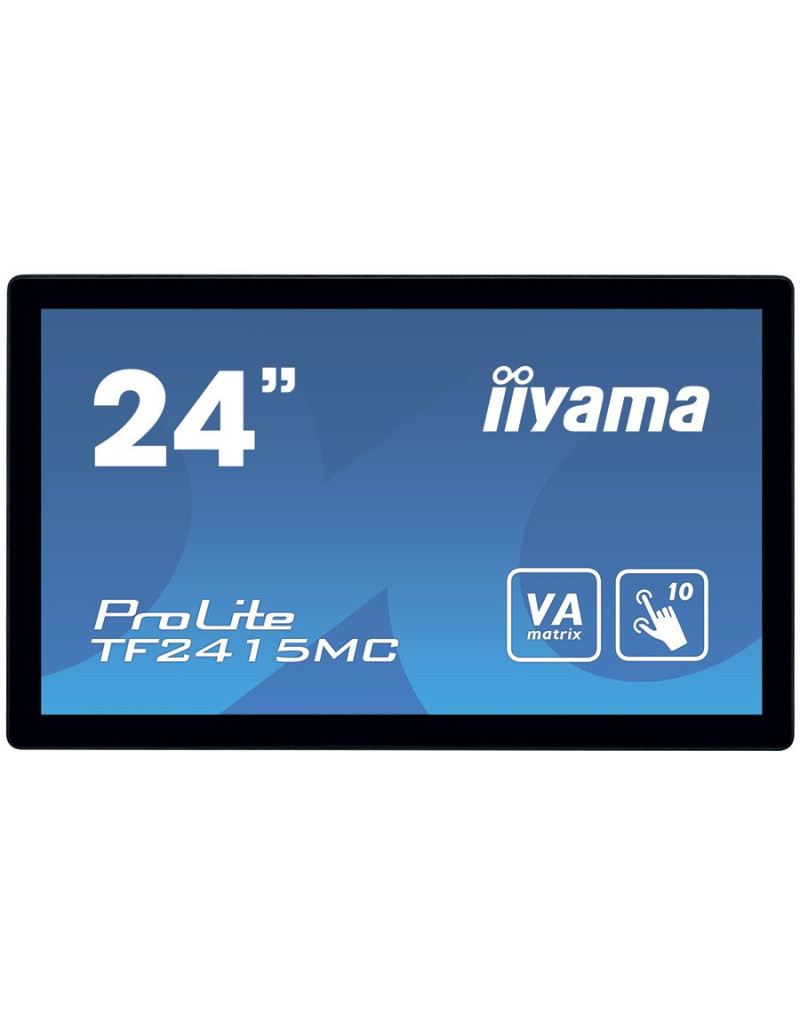

iiyama ProLite TF2415MC-B2 Open Frame PCAP 10 point touch screen equipped with...

Specifikacija

EPREL

1260611

Cable Included

Power Cable USB Cable HDMI Cable DisplayPort Cable

Power Consumption Operational

25 W

Power Device Location

External

Maximum Resolution

1920x1080

Power Device Type

Power Supply

Power Consumption Stand By/Sleep

1.2 W

VGA

1 (15-pin D-sub)

Display Type

LCD

Display Technology

TFT Active Matrix

Diagonal Length

24"

Viewable Display Diagonal Length

23.8"

Pitch Type

Dot Pitch

Pitch Width

0.2745 mm

Color Support

16.7M

Maximum Video Refresh Rate @ Max. Resolution

60 Hz

Image Brightness

350 cd/m^2

Image Contrast

3 000 : 1

Image Max. H-View Angle

178 °

Image Max. V-View Angle

178 °

Response Time

16 ms

Image Aspect Ratio

16:9

Monitor Compliant Standards

VESA DDC 2B

Display Features

LED BacklightHDCP ReadyFingerprint-resistant Oleophobic CoatingCapacitive Multi-Touch10 Point Touch-Screen

Type of Matrix

VA

Maximum Horizontal Scan Frequency

82 kHz

Minimum Horizontal Scan Frequency

31.4 kHz

Maximum Vertical Scan Frequency

75 Hz

Minimum Vertical Scan Frequency

56 Hz

DisplayPort

1

External Color

Black

Warranty Products Returnable

Yes

Warranty Term (month)

36 month(s)

Warranty validation Criteria

Serial Number

Pack Weight Brutto (kg)

7 kg

Pack Weight Netto (kg)

1.2 kg

Pieces in pack

1

Box Weight Brutto (kg)

7 kg

Retail Packaging Net Weight Carton

1 kg

Retail Packaging Net Weight Plastic

0.2 kg

Packs in Box

1

Included Accessories

Stand Quick Start Guide Mount kit Safety Sheet

Maximum Operating Ambient Temperature

40 °C

Minimum Operating Ambient Temperature

0 °C

OSD Languages

Chinese, Dutch, English, French, Italian, Japanese, Estonian

Audio Line-Out

1 (3.5-mm minijack)

Certifications

REACH SVHC,CB, CE, TÜV-Bauart, CU, cULus

Depth (mm)

42.5 mm

Height (mm)

347 mm

Width (mm)

575 mm

Nominal Weight

5.8 kg

Maximum Non-Operating Ambient Temperature

60 °C

Minimum Non-Operating Ambient Temperature

-20 °C

EAN Code

4948570116775

Mounting Capability

Horizontal Surface

Flat Display Mounting Interface

100mm

HDMI

1 (HDMI (Type A))
